SKU: I-3M-5FT

3M™ Thinsulate™ SM600L Acoustic Thermal Insulation

Regular price $126.00 CAD
Sale price $126.00 CAD Regular price
Sale Sold out
Unit price
/per
Shipping calculated at checkout.
Size:
In stock and ready for shipping
This is a pre order item. We will ship it when it comes in stock.

3M Thinsulate SM600L acoustic and thermal camper van insulation, 60 inches wide and cut to order in selectable linear-foot lengths. One linear foot covers approximately five square feet. Choose the quantity for your Mercedes-Benz Sprinter, Ford Transit or Ram ProMaster build.

Shipping

FREE Shipping to U.S. Lower 48 & Canada
Stock Status
In Stock

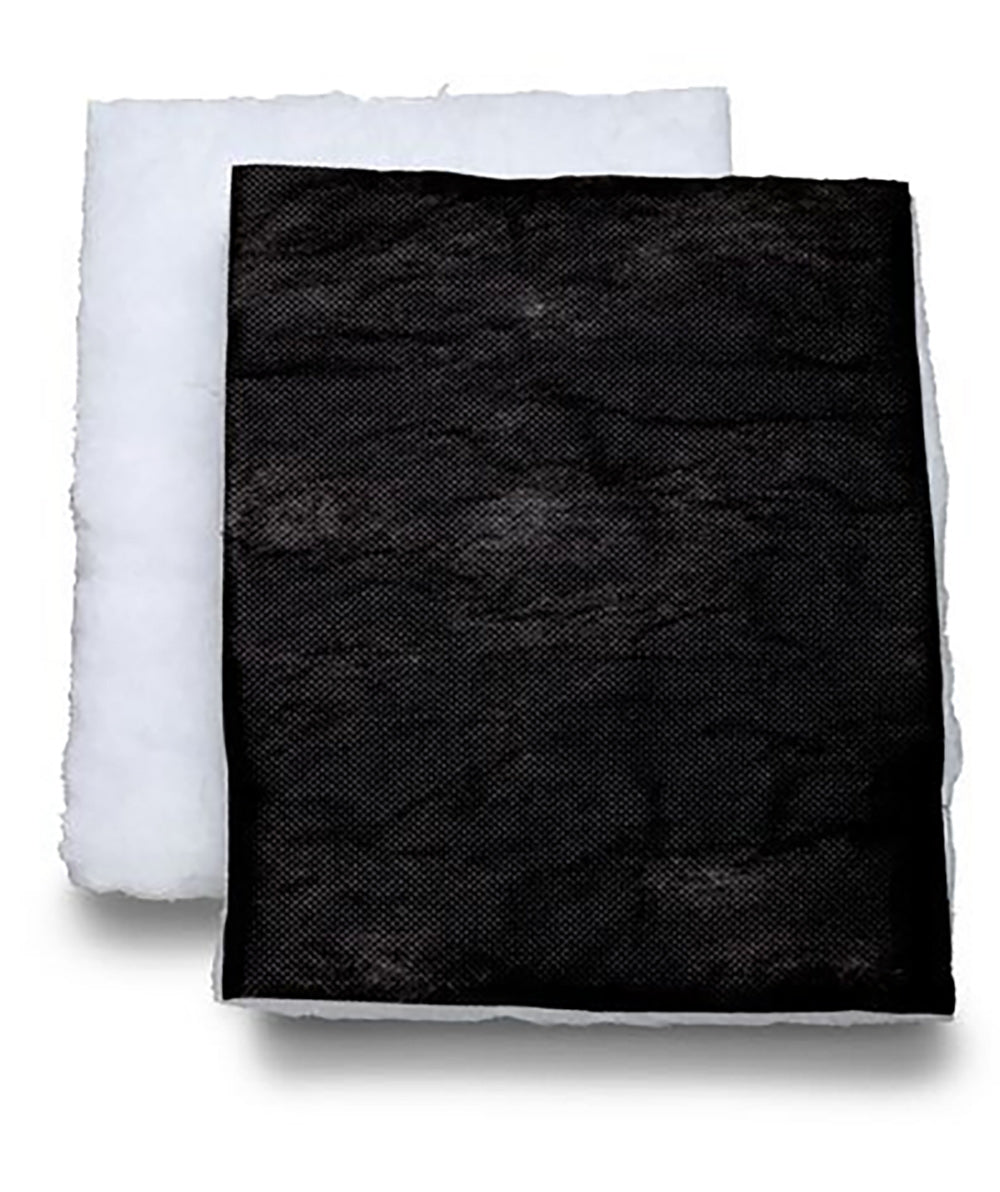

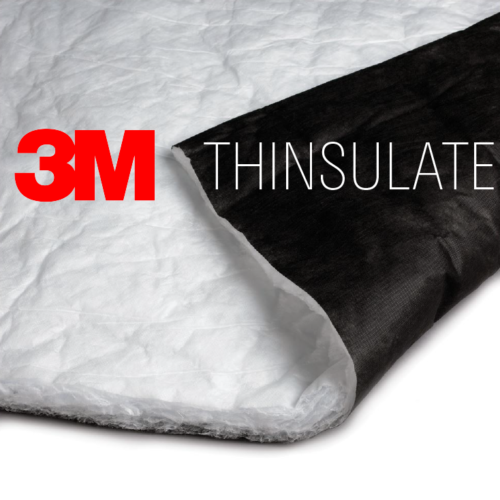

3M SM600L sound & thermal insulation engineered for vehicles. 60" wide, scrim on one side. 1 linear foot is 5 square feet. Material comes compressed from 3M. The nominal thickness is approximately 42 mm (1.65 inches). 3M reports a self-extinguishing result under SAE J369 testing (FMVSS 302).

  • Delivers more acoustic absorption per unit weight vs. competitive products
  • Helps customers meet mass reduction goals
  • Non-woven sound absorbing fibers create a quieter vehicle environment
  • Hydrophobic fibers resist moisture, mold and mildew

3M Thinsulate(TM) is delivered in a compressed form, similar to how we ship it. Fresh off the roll, the SM600L typically measures between 3/4 and 1 inch in thickness. Over time, it will naturally expand, although this process can take several weeks. For ease of installation, it's advisable to fit the material while it's still compressed and allow it to expand in place. The material's expansion is often aided by the vibrations from driving and exposure to heat, allowing it to 'fluff up'. The SM600L has a standard thickness of 42mm (1.65 inches) but can expand up to 2 inches, especially when hung from the ceiling, depending on the available space. Importantly, Thinsulate(TM) will only expand to fill the space it's given, without exerting pressure that could warp or bow trim panels.

We highly recommend pairing it with our Duck Liner. Together they deliver an outstanding overall insulation result, effective noise reduction, and condensation prevention, creating the perfect setting for your adventures. Choose this combination for a superior van life experience. Save by bundling it with Duck Liner bundle packs.

We recommend using 3M Spray Adhesive 90 to apply the white fiber side to the Van skin or Duck Liner.


*All size estimates assume sliding door and back door windows. If you don’t have any windows, add 10 more linear feet to your order

1. How much 3M Thinsulate SM600L do I need for my camper van?

The amount depends on the vehicle model, wheelbase and number of windows. Use Tec Vanlife’s sizing chart to select the recommended quantity for your Sprinter, Ford Transit or Ram ProMaster. Vans without rear or sliding-door windows generally require approximately 10 additional linear feet.

2. What size is one linear foot of SM600L?

SM600L is 60 inches wide. One linear foot measures 12 × 60 inches and covers approximately five square feet.

3. Is 3M Thinsulate SM600L suitable for camper vans?

Yes. SM600L is a lightweight automotive acoustic insulation commonly used in camper-van walls, ceilings, doors, pillars and other cavities. It helps reduce interior noise while providing thermal insulation.

4. Which side of Thinsulate faces the van?

Install the white fibre side toward the metal van body. The black scrim should face the interior of the vehicle.

5. What adhesive should I use?

Use a suitable high-temperature contact adhesive such as 3M Hi-Strength 90 Spray. Apply the adhesive according to the manufacturer’s instructions and ensure the surface is clean and dry.

6. Does Thinsulate absorb water?

SM600L uses hydrophobic fibres that resist moisture, mould and mildew. It does not readily absorb water, making it well suited to vehicle environments. Proper ventilation and moisture management are still important in any camper conversion.

7. How thick is SM600L?

The nominal thickness is approximately 42 mm or 1.65 inches. It may arrive compressed and gradually recover its loft after unpacking and installation.

8. Do I need a vapour barrier with Thinsulate?

Many camper-van installations use SM600L without a traditional plastic vapour barrier because its fibres resist moisture. However, the complete wall design, climate, ventilation and treatment of exposed metal should all be considered.

9. Can SM600L be used on the floor?

SM600L is best suited to walls, ceilings, doors and cavities. A rigid, compression-resistant insulation is generally more appropriate beneath a camper-van floor. we usually install stripes of DUCK liner inbetween the grooves and roll and full ontop top create a floating floor.

10. Does Thinsulate also reduce road noise?

Yes. SM600L is designed as an automotive acoustic absorber and helps reduce airborne sound inside the vehicle. For a more complete sound and thermal system, it can be paired with Tecvan Duck Liner.

11. Is SM600L safe for automotive use?

SM600L is designed for automotive acoustic applications and is listed as meeting FMVSS 302 flammability requirements. Always follow appropriate vehicle-installation practices.



Frequently Asked Questions

How much 3M Hi-Strength 90 spray adhesive do I need for Thinsulate?

A single can typically covers about 20 linear feet of insulation.
